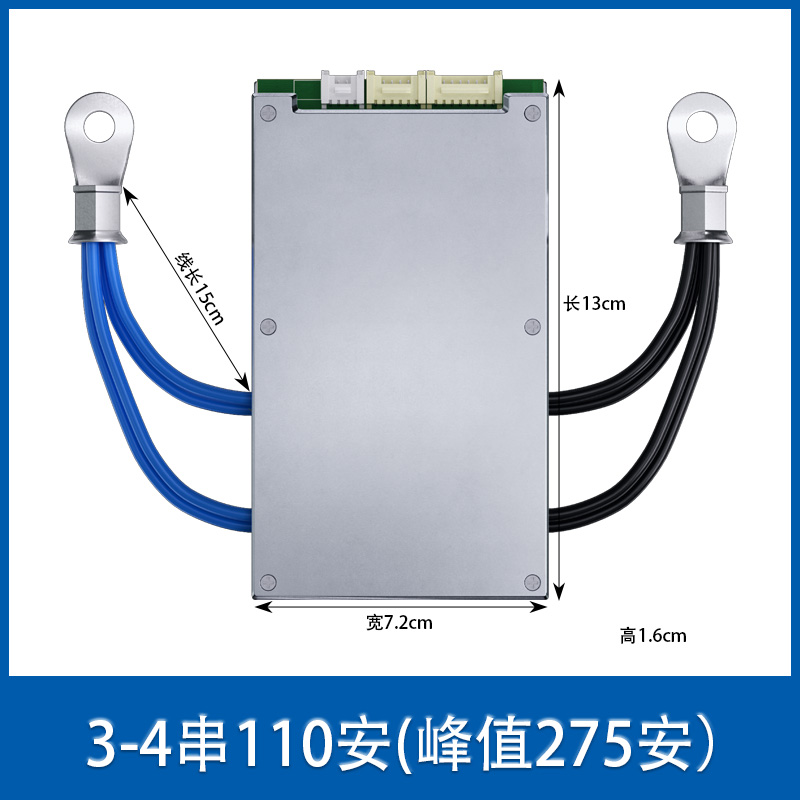

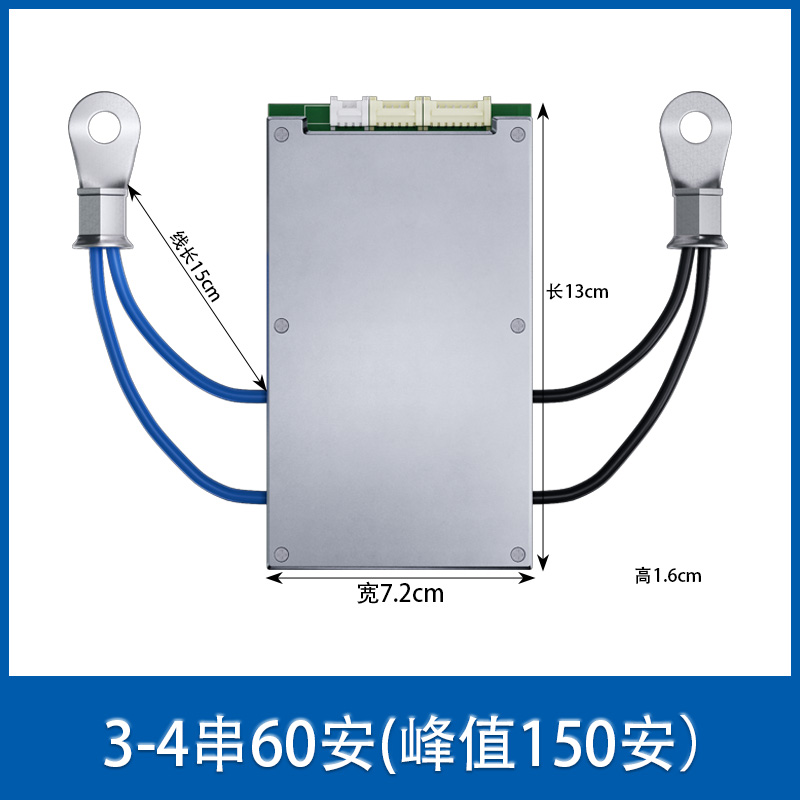

孔位尺寸图



方框图

系统拓扑

技术参数

功能 Function	内容 Content	备注 Remarks
1 内置蓝牙 Built-in Bluetooth	支持安卓苹果手机 Supports Android and iOS devices	可连接蓝牙查看参数，设置BMS参数 Connects via Bluetooth to view parameters and configure BMS settings
2 可检测串数 Detectable Cell Count	3-4串锂电池 3-4 cells for lithium-ion batteries	连接蓝牙设置串数 Connects via Bluetooth to configure the number of cells
3 支持电芯 Supported Cell Types	三元锂、磷酸铁锂、钛酸锂、钠离子 Lithium-ion, lithium iron phosphate, lithium titanium	连接蓝牙一键设置电芯类型（会自适应改变单体保护电压） Connects via Bluetooth to configure the number of cells
4 供电方式 Power Supply	电池包自供电，20-100V DC 输入 Battery pack self-powered, 8-16V DC input	自动进入低功耗模式
5 单体电压检测 Single Cell Voltage Detection	0-5V，全工作范围内误差 < 20mV 典型误差值<10mV 0-5V, error within the entire working range < 20mV, typical error < 10mV	分辨率 1mV Resolution: 1mV
6 单体电压掉线检测 Single Cell Voltage Dropout Detection	支持 Supported
7 均衡功能 Balancing Function	最大 100mA 被动均衡 Maximum 100mA passive balancing	可通过设置参数满足条件来主动均衡 Active balancing can be achieved by setting parameters based on conditions
8 温度检测 Temperature Detection	-40 ~ 125 ℃	BMS内置均衡/MOS/2路，可外接2路 BMS has built-in balancing/MOS/2 channels and supports external 2 channels
9 总压检测 Total Voltage Detection	检测范围 0-100V。 <0.5% FSR(FSR=满量程) Detection range 0-100V, <0.5% FSR (FSR=Full Scale Range)
10 电流检测 Current Detection	分流器，-150A ~ 300A，误差 <0.5% FSR
11 SOC 估算精度 SOC Estimation Accuracy	误差 < 8% （工况） Error < 8% (operational conditions)	连接蓝牙一键设置电芯类型（会自适应改变单体保护电压） Bluetooth connectivity for setting cell type (adaptive change in single-cell protection voltage)
12 总循环AH Total Cycle AH	累计值取充电放电数值的一半 Accumulated value, half of the charging and discharging values
13 短路保护 Short Circuit Protection	支持（可调） Supported (adjustable)	可设置 Can be configured
14 故障记录 Fault Records	支持（400条循环记录） Supported (400 cycle records)	连接蓝牙查看系统日志，支持上传平台 View system logs via Bluetooth, supports platform upload
15 工作功耗 Operating Power Consumption	< 5mA（无通讯） < 5mA（no communication）	<15mA（485 /CAN）
16 待机功耗	< 2mA	检测到充放电自动唤醒 Automatically wakes up upon charge/discharge detection
17 工作温度 Operating Temperature	-40 ~ 85 ℃
18 工作湿度 Operating Humidity	5% ~ 95%
19 防护等级 Protection Level	IP30
20 重量 Weight	< 400g
21 CAN 接口 CAN Interface	1 路，支持上位机管理 1 channel, supports host computer management	485和CAN二选一 Selectable between 485 and CAN
22 485接口 485 Interface	1 路，支持上位机管理 1 channel, supports host computer management	485和CAN二选一 Selectable between 485 and CAN
23 TTL 接口 TTL Interface	1 路，支持上位机管理 1 channel, supports host computer management	485和TTL二选一 Selectable between 485 and TTL
24 GPS接口 GPS Interface	1路，共用接口	蓝牙和GPS二选一
26 配件包 Accessory Package	均衡线70CM，温控线两条，开机线开关1套（重量59g） 70CM balancing wires, two temperature control wires, 1 set of power switch wires (weight: 59g)
